PERSA
Swing Gate Motor
Compact under arm linear ram motor
A compact linear ram actuator designed for straightforward residential swing gates
Premium European Design
Designed, engineered and built by Motorline Lda 100% in Europe. Motorline has a 30 year track record in gate and barrier automation.
Persa is a compact linear ram actuator for residential swing gates with leaves up to 3 metres. With a fixed 400mm screw-driven stroke and a force rating of 2,800N, it delivers reliable push-pull action with simple geometry and straightforward installation.
2800N Drive Force

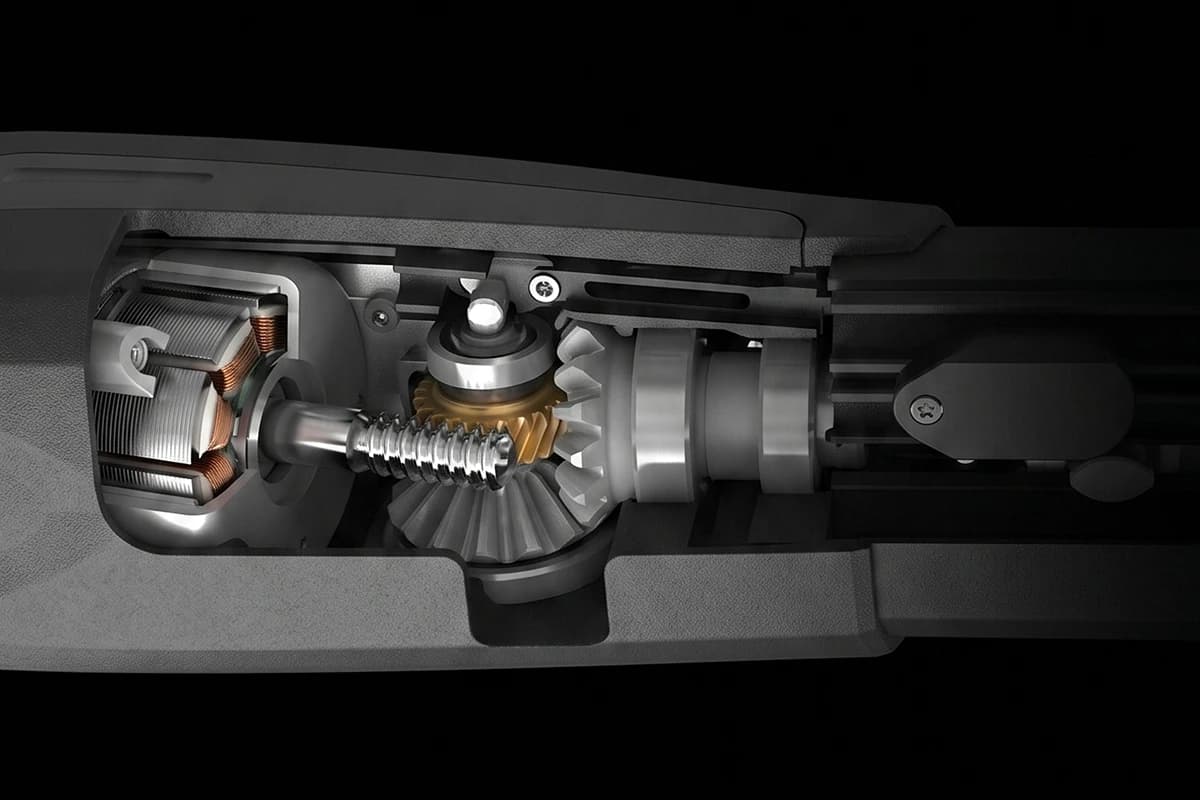

Precision screw drive rated to 2800N delivers reliable push-pull action through the full 400mm stroke.
- Handles leaves up to 3 metres
- Consistent force throughout stroke
- Screw-drive reliability
IP54 Weatherproof
Rated IP54 for protection against dust and water jets, built for permanent outdoor installation.
- Dust-protected internals
- Resistant to water jets
- Reliable in rain and humidity
Quiet Under 50dB
Operates at less than 50dB — quiet enough for residential use without disturbing neighbours.
- Under 50dB operating noise
- Smooth, controlled movement
- Minimal vibration
230V or 24V DC
Available in two voltage options to suit any residential electrical installation without external transformers.
- AC 230V 50/60Hz
- DC 24V option
- No external transformer needed
Manual Emergency Release
Key-operated mechanical release allows the gate to be moved by hand instantly during a power outage.
- Key-operated in seconds
- Gate accessible without power
- Release key included in kit
-25°C to +65°C Range
Engineered to operate reliably across extreme temperatures, with built-in thermal protection at 120°C.
- Cold-climate compatible
- Heat-resistant operation
- 120°C thermal cutout
What's the Difference Between Persa and Jag?
Persa
A more compact body at 920mm keeps the installation tidy and unobtrusive — the better choice for standard residential gates up to 3 metres where simplicity matters.
- Compact 920mm body for tighter pillar spacing
- Fixed 400mm stroke for straightforward geometry
- Handles leaves up to 3 metres

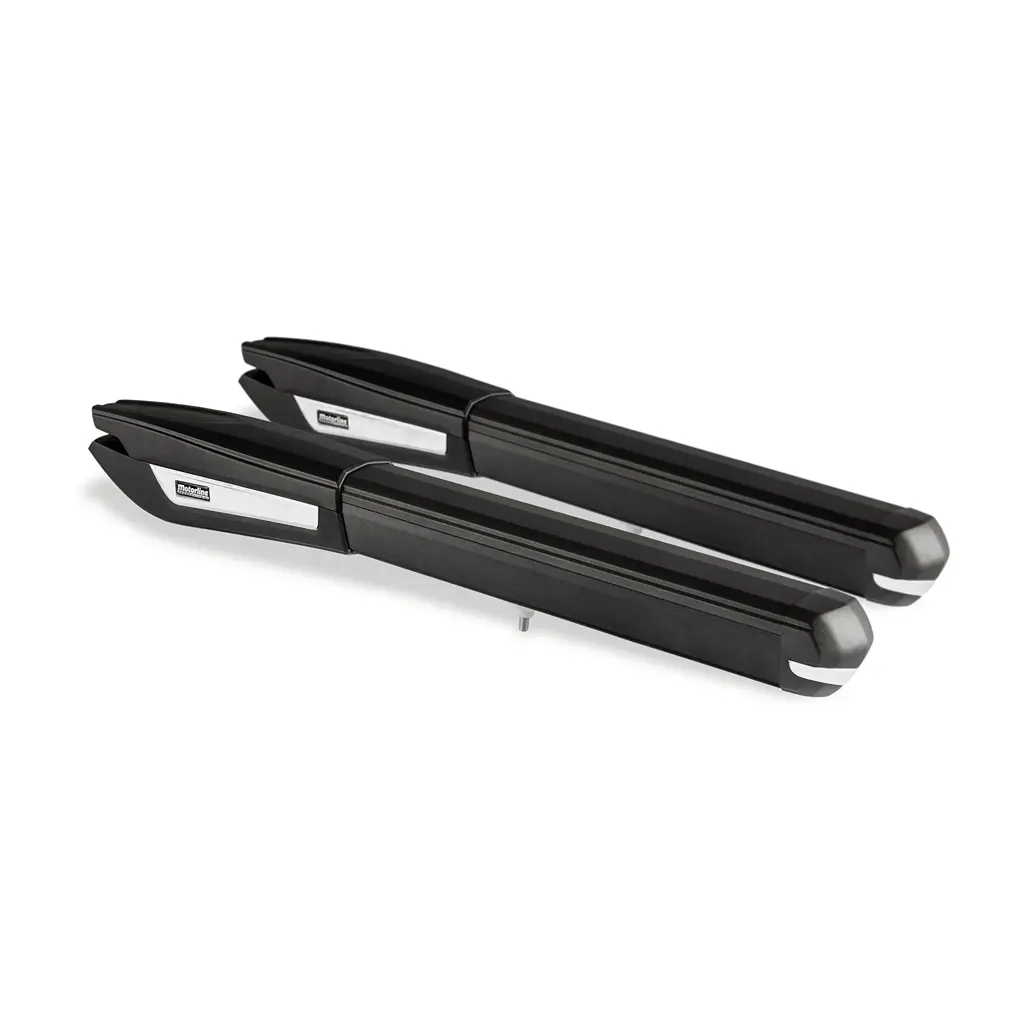

Jag
Available in JAG400 and JAG600, it scales to gates up to 4 metres and suits installations where a longer stroke or more complex geometry is needed.
- Two stroke options: 400mm and 600mm
- Handles leaves up to 4 metres (JAG600)
- Higher operating ceiling of 75°C
Total Control, Anywhere
Experience ultimate convenience with the Motorline smart apps, allowing you to remotely operate gates, receive real-time activity alerts, and manage user access with just a few taps from anywhere in the world.

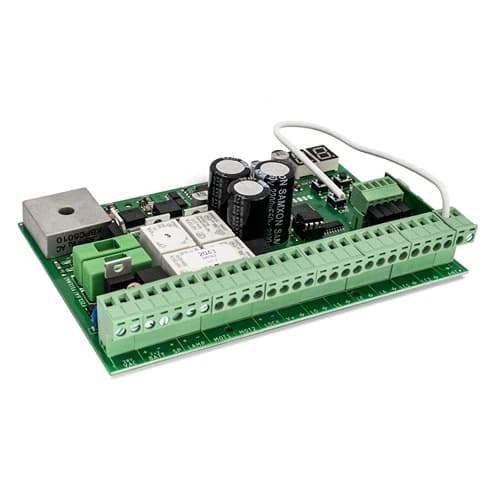

MC52, MC62 Control Board
Simple Programming & WiFi Connectivity
Compatible with MCONNECT LINK for management and control via the MCONNECT app
Compatible with MCONNECT LINK
More convenience and efficiency:
- Adjust gate opening and closing times directly from the App
- Receive real-time alerts whenever the gate is used
- See detailed actions history
Intuitive Interface
Easily check device status via the programming display or LEDs.
Autoprogramming
Display and navigation buttons for simplified installation in just two steps.
Precise Adjustments
Full control of position and speed at any time, with specific adjustments for acceleration, deceleration, start time, deceleration distance and approach speed during opening and closing.
For the Places Where Wi-Fi Won't Reach

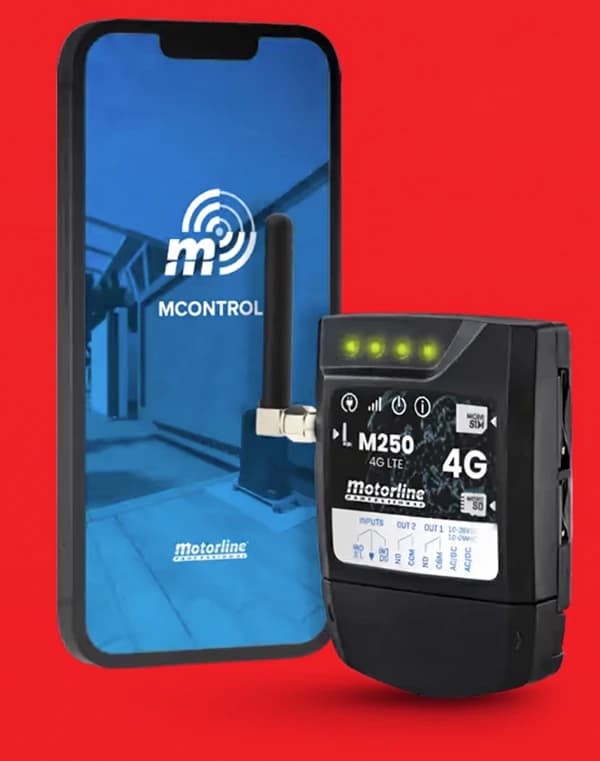

M200 and M250 Communicators
- Ensures a stable and secure connection through 4G LTE to ensure your motor runs smoothly.
- Advanced security and access control features provide convenience for professionals and peace of mind for users.
- The MCONTROL app available for download in app stores
What Comes in the Kit

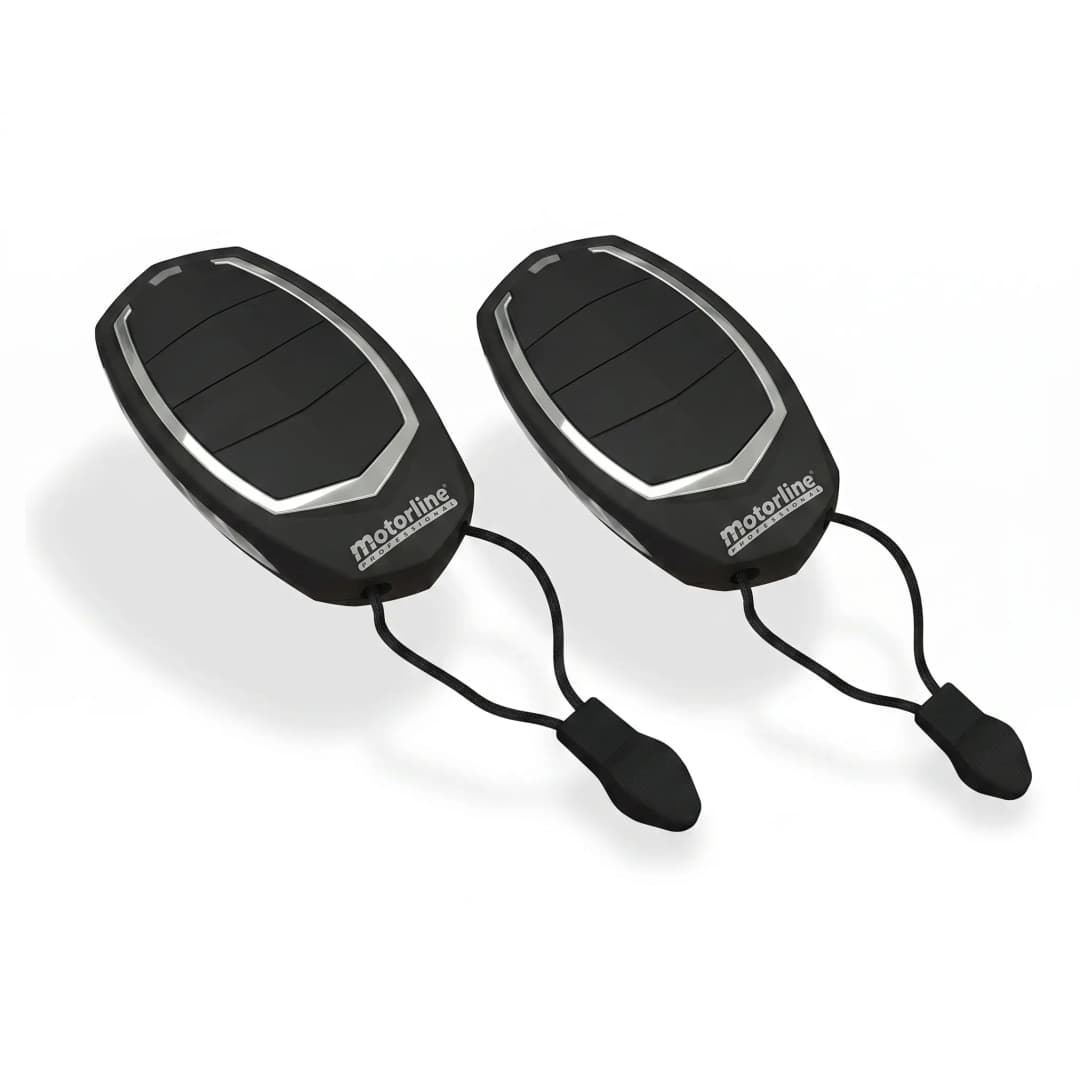

Everything you need for a complete installation: two PERSA motors, MC91BL-SC control board, two FALK remote controls, and an MF30 photocell pair.
Complete Your Gate With Extra Accessories
Tailor your installation to the site. Add battery backup for power resilience, extend remote range with an external antenna, or go fully off-grid with solar. Every accessory is designed to integrate seamlessly with the Galo system.
Specifications
| PERSA400 | ||
|---|---|---|
| Power Supply | 230V | AC 230V 50/60Hz |
| 24V | DC 24V | |
| Power | 230V | 230W |
| 24V | 80W | |
| Current | 230V | 1.3A |
| 24V | 3A | |
| Rotational speed | 230V | 1400 RPM |
| 24V | 1650 RPM | |
| Noise level | <50dB | |
| Force | 2800N | |
| Operating temperatures | -25°C to 65°C | |
| Thermal protection | 120°C | |
| Protection class | IP54 | |
| Working frequency | 230V | 25% |
| 24V | 55% | |
| Course | 400mm | |
| Max leaf length | <3000mm | |
| Capacitor | 12.5µF | |
| Opening speed | 230V | 20mm/s |
| 24V | 23.5mm/s | |
Dimensions
Persa 400
